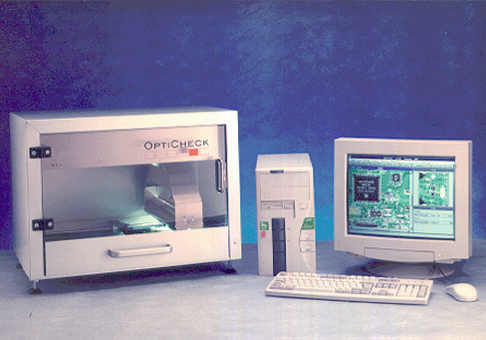

OptiCheck-TopTable system, with Scan–Box for automatic Offline – Inspection.
| Technical Data | A3 format | A4 format | ||
|
Power consumption |
: 240V, 50 Hz, 6A |
: 240V, 50 Hz, 6A |
||
|
Dimensions |
: 750 x 540 x 420 mm |
: 650 x 510 x 460 mm |
||
|
Weight |
: 45kg |
: 30kg |
||
|
Board size |
: 430 x 320 mm |
: 370 x 300 mm |
||
|
Image size (max) |
: 420 x 290 mm |
: 330 x 210 mm |
||
|
Board height (max. up) |
: 20 mm |
: 30 mm |
||
|
Board height (max. low) |
: 50 mm |
: 50 mm |
||
|
Resolution (max. optical) |
: 1200 dpi (0,021 mm/Pixel) |
: 600 dpi (0,042 mm/Pixel) |
||
