OptiCheck - Inline System

OptiCheck-Inline solution for full automatic operation.

OptiCheck - Inline System

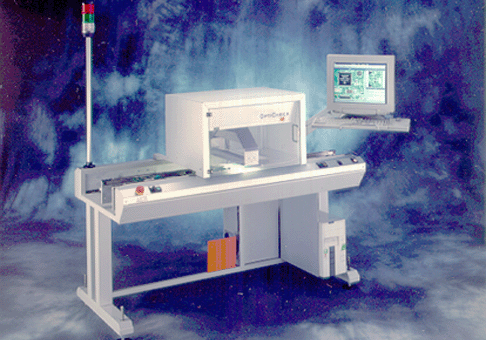

OptiCheck-Inline system, including a three part ASYS transport module is switchable from single inspection to continuous inspection or no inspection in the case that validation is not necessary.

  • Lane 1: Arrival zone, used as a buffer.
  • Lane 2: Scan zone, for image processing.
  • Lane 3: Exit zone for separating faulty boards.

The system is ready to plug into all common interfaces like Siemens, SMEMA, SMPI, Fuji, Panasonic ...

The Conveyor unit with an additional scan computer allows the parallel picture reception and check. The parallel processing in a twin computer system enlarges the speed - especially for strong production lines.

Technical Data A3 format
Power consumption
 : 240V, 50 Hz, 6A
Dimensions
 : 1590 x 810 x 2000 mm
Weight
 : 195 kg
Board size
 : 500 x 420 mm
Variable transport width
 : 70 - 420 mm
Image size (max)
 : 420 x 290 mm
Board height (max. up)
 : 20 mm
Board height (max. low)
 : 50 mm
Resolution (max. optical)
 : 1200 dpi (0,021 mm/Pixel)
